Ducati Diavel Carbon, 2011





Ducati Diavel Carbon, 2011

United States of America Specifications



Engine
TYPE
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
DISPLACEMENT 1198.4cc
BORE X STROKE 106 x 67.9mm
COMPRESSION RATIO 11,5:1
POWER 162hp (119kW) @ 9500rpm

TORQUE 94lb-ft (127.5Nm) @ 8000rpm
FUEL INJECTION
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
EXHAUST
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers

Transmission
GEARBOX 6 speed
RATIO 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25

PRIMARY DRIVE
Straight cut gears, ratio 1.84:1

FINAL DRIVE
Front sprocket 15; Rear sprocket 43

CLUTCH
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run

Chassis
FRAME
Tubular steel Trellis frame
WHEELBASE 1590mm (62.6in)
RAKE 28°
FRONT SUSPENSION
Marzocchi DLC coated 50mm fully adjustable usd forks
FRONT WHEEL TRAVEL 120mm (4.7in)
FRONT WHEEL
Marchesini forged and machined 9-spoke 3.50 x 17
FRONT TYRE 120/70 ZR 17 Pirelli Diablo Rosso II

REAR SUSPENSION
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
REAR WHEEL TRAVEL 120mm (4.7in)
REAR WHEEL
Marchesini forged and machined 9-spoke 8.00 x 17
REAR TYRE 240/45 ZR17 Pirelli Diablo Rosso II
FRONT BRAKE 2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
REAR BRAKE 265mm disc, 2-piston floating calliper with ABS
FUEL TANK CAPACITY 17l - (5.3US gal)
DRY WEIGHT 207kg (456lb)

INSTRUMENTS
Handlebar mounted instrumentation with LCD display: speed, rpm, time, coolant temp. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, ABS status, oil pressure, fuel reserve. Tank mounted instrumentation with TFT colour display: gear selected, air temp, battery voltage, trips 1 & 2, fuel reserve trip, average and actual fuel consumption, average speed, trip time, scheduled maintenance. Full status and/or management of Riding Modes, DTC, RbW and ABS
WARRANTY
2 years unlimited mileage

BODY COLOUR (FRAME/WHEEL)
Red and Matt Carbon (red / black) - Glossy and Matt Carbon (racing black / black)
VERSIONS Dual seat
SEAT HEIGHT 770mm (30.3in)

Ducati Diavel Carbon

The Diavel Carbon embodies the true nature of the Diavel concept, where performance combines with style to celebrate Italian engineering at its best. Lightweight composites and milled aluminium components meld the two worlds of sport and style with features that are both visually beautiful and functionally high-performance.

Hard to be seen, easy to be noticed.Even when disappearing in a split second, everyone will always be captivated. This is the magic of Diavel.

The design sets new standards in beauty, innovation and sophistication, while outstanding agility and handling are encased within a muscular body which moves with 162 hp. Its astonishing power can be managed in three different Riding Modes and with the assurance of the Ducati Safety Pack (ABS + Ducati Traction Control). Ducati has created something truly magic.

It will be called "DIAVEL" and will arrive at the new Ducati EICMA dream

Preceded by rumors, photos stolen and a lot of waiting, we received word is final. EICMA, the International Motorcycle Exhibition in Milano at Rho-November 2 to 7, will mark the first official appearance in public for the new Ducati.

Livery and specifications are defined and Ducati is ready to make his dream a reality. While waiting for the official presentation of Ducati also comes the anticipation of the name of this great news that, inspired by an expression in the dialect of Bologna, will be called "DIAVEL", or "devil."

A name that has its own particular history that stems from an incident that occurred during the development of the bike.

In fact, once set up the first prototype, with all the technical staff around the new creature "made in Borgo Panigale," a sentence in the dialect of Bologna said the original lines of the bike and winning, "ignurant comm 'to diavel!" Which, bringing the statement in Italian, it would sound "is as bad as the devil."

From that moment, "DIAVEL" became the name of "inside" the bike, to replace the internal code of the project. The decision to keep it for the production was, as you can imagine, a logical consequence.

Genesis similar to this, even if we are talking about almost 20 years ago, characterized another icon Ducati, the Monster, whose name was inspired by the now famous statement, also in the dialect of Bologna, "is just the 'n monster! "or" is just a monster. "

As for Monster, the name DIAVEL then becomes the expression of that unique, passionate, further characterized by high technology and a unique design distinguishes every Ducati motorcycle produced.

At the same time it is also easy to see what this new bike and, while bound to tradition Ducati, destined to mark an important new chapter in respect of the aesthetic and performance.

The new Ducati DIAVEL be extremely accurate in every detail, carved in every muscle, comfortable and innovative. As in any real Ducati, the performance will play a very important role. Torque, power and dynamic behavior will be a new benchmark, thanks to the Testastretta engine 11 ° - the same as the Multistrada 1200 - and weighs only 207 kg dry, which promises superbike acceleration and speed and agility to change direction .

A relaxed riding position, the suspension comfort and safety are guaranteed by the ABS, traction control and standard riding mode, will satisfy even those riders who love to drive in peace, enjoying the street, landscape and all the characteristics of This new dream Ducati.

Read More

Ducati Diavel, 2011





Ducati Diavel, 2011

Ducati Diavel Design

You can avoid eyes, but not admiration.The Diavel project was born when Ducati designers applied their wish-list of bike “basic instincts” to a blank canvas. With a “what if?” approach to creating a dream bike, they sketched inspiring shapes which became a lower and longer motorcycle. “The challenge of building a muscular silhouette over a pure-bred competition motor had to be met with determination and a delicate touch, and the result is a frontal area that looks like a power athlete on the starting blocks,” explains the team at Ducati Design responsible for the project.

Superior trust and confidence.
The stance of the Diavel is that of readiness, dominance, and confidence bordering on superiority. With lateral radiators adding muscle to its broad “shoulders,” which then taper down across the engine and into the belly-fairing with oil cooler, the athlete took shape.

The Diavel project was born when Ducati designers applied their wish-list of bike “basic instincts” to a blank canvas. With a “what if?” approach to creating a dream bike, they sketched inspiring shapes which became a lower and longer motorcycle.
“The challenge of building a muscular silhouette over a pure-bred competition motor had to be met with determination and a delicate touch, and the result is a frontal area that looks like a power athlete on the starting blocks,” explains the team at Ducati Design responsible for the project.
“With the front wheel kept close to the Diavel’s body and using the short tail of a sport bike, we were able to blend this muscular design with a chassis that matched.”

The stance of the Diavel is that of readiness, dominance, and confidence bordering on superiority. With lateral radiators adding muscle to its broad “shoulders,” which then taper down across the engine and into the belly-fairing with oil cooler, the athlete took shape.
A massive 240 section rear tyre was a perfect example of how Diavel designers used a no-compromise attitude when applying their wish list of features. Ducati’s philosophy for innovation has always been to push the boundaries of design in the name of exciting motorcycles.



United States of America Specifications

Engine
Type
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement 1198.4cc
Bore x Stroke 106 x 67.9mm
Compression ratio 11.5:1
Power 162hp (119kW) @ 9500rpm
Torque 94lb-ft (127.5Nm) @ 8000rpm
Fuel injection
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Exhaust
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers

Transmission
Gearbox 6 speed
Ratio 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25

Primary drive
Straight cut gears, ratio 1.84:1

Final drive
Front sprocket 15; Rear sprocket 43

Clutch
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.

Chassis
Frame : Tubular steel Trellis frame
Wheelbase : 1590mm (62.6in) Rake : 28°

Front suspension
Marzocchi 50mm fully adjustable usd forks
Front wheel travel 120mm (4.7in)
Front wheel 14-spoke in light alloy 3.50 x 17
Front Tyre 120/70 ZR 17 Pirelli Diablo Rosso II

Rear suspension
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear wheel travel 120mm (4.7in)
Rear wheel 14-spoke in light alloy 8.00 x 17
Rear tyre 240/45 ZR17 Pirelli Diablo Rosso II
Front brake 2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
Rear brake 265mm disc, 2-piston floating calliper with ABS
Fuel tank capacity 17l - (5.3 US gal)
Dry weight 210kg (463lb)

Read More

Kymco Downtown 300i, 2011

Kymco Downtown 300i, 2011

The Downtown 300i was designed and built for an enjoyable commute! With the open road performance of a maxi scooter and sport bike agility, the Downtown 300i delivers the ultimate scooter riding experience. The new entry in the KYMCO scooter family is powered by an all new 4-valve Electronic Fuel Injected engine coupled to an agile, responsive, light weight dual cradle steel chassis. The onboard carrying capacity of the Downtown 300i offers all the space for your daily commuting needs with a lighted, under seat storage space big enough for two helmets and a watertight console compartment for cell phone storage equipped with a 12V accessory outlet right at your fingertips. Add an optional top case and your daily commuter ride turns into a weekend touring machine

Additional Features: Modern colour schemes, electronic fuel injection, front and rear disk brakes, integrated passenger grips, center hook, illuminated under seat storage with room for 2 helmets, watertight in dash storage compartment with 12v accessory outlet for cell phones, digital instrument cluster, windscreen, dual beam quartz halogen head lights, integrated passenger pegs, 5 position adjustable rear shocks, 5 in 1 magnetic key lock system, sturdy center stand, spring assisted side stand, 12.5 litre fuel capacity.

With the open road performance of a maxi scooter and sport bike agility, the Downtown 300i delivers the ultimate scooter riding experience. The new entry in the KYMCO Scooter family is powered by an all new 4-valve Electronic Fuel Injected engine coupled to an agile, responsive, light weight dual cradle steel chassis. The onboard carrying capacity of the Downtown 300i offers all the space you need. A lighted, underseat storage space is big enough for two helmets and a watertight console compartment for cell phone storage, equipped with a 12V accessory outlet for charging your phone, is right at your fingertips, satisfying all your daily commuting needs. Add an optional top case and your daily commuter ride turns into a weekend touring machine. The Downtown 300i: class leading performance and styling plus great fuel economy too! Choose from three elegant color options: Pearl White, Silver or Burnt Orange. Get Ready to Be Amazed!

Dual Beam Quartz Halogen Head Lights

• 5-Position Adjustable Rear Shocks
• 5 in 1 Magnetic Key Lock System
• 260mm Disc Brake Front/ 240mm Disc Brake Rear
• Lighted Underseat Storage for two Helmets
• Watertight in Dash Storage for Cell Phone with 12V Accessory Outlet

Specifications

• Engine Type Liquid Cooled, Single cylinder, 4 Stroke
• Displacement 298.9 cc
• Bore & stroke 72.7 x 72 mm
• Compression ratio 10.8 :1
• Valve train O.H.C., Chain Drive
• Fuel Delivery Electronic Fuel Injection
• Ignition Electronic Fuel Injection
• Transmission Automatic CVT
• Spark plug CR7E (NGK)
• Emission CEPA Environmental Registered
• Fuel capacity 12.5 litres
• Tires 120/80-14 Front; 150/70-13 Rear
• Front Suspension Telescopic Forks
• Rear Suspension Swing Arm
• Front Brakes Disk
• Rear Brakes Disk
• Instrument cluster Analog Speedometer & Tachometer, Digital Odometer, Digital Clock, Low Fuel Indicator, Light Indicator, Digital Coolant Temperature Light, Maintenance Light, Oil Pressure Light, Low Battery Light
• Stands Centre and Side Stand
• Storage compartment Under Seat Compartment for two full faced helmets
• Complete Size (L x W x H) 2200 x 810 x 1150 mm
• Seat Height 775 mm
• Dry weight 166.5 kg
• Maximum Passengers 2

Read More

Kymco

Kymco, 2011

= Kymco Quannon 150
= Kymco Downtown 300I
= Kymco Frost 200i
= Kymco Sento 50
= Kymco Super 8 50 2T

Kymco2010

Kymco, 2009

= Kymco Agility 125
= Kymco Agility 50

Kymco

Read More

Yamaha Royal Star Venture S, 2011



Yamaha Royal Star Venture S, 2011

Fuel Consumption * 18kpl/51mpg(Imp)
1,294cc, liquid-cooled V-4
Luggage space to spare

ENGINE

• 1,294cc, liquid-cooled, DOHC, 4-valve, V-4 power produces class-leading power - 98hp and maximum torque of 89 ft-lb @ 4,750 rpm - for incomparable touring performance.
• 4 valves per cylinder head design ensures maximum breathing efficiency for great engine performance.
• Four Mikuni BDSR 32mm carburetors with TPS deliver seamless throttle response.
• Each carburetor features a single 15-watt heater to ensure consistent fuel/air delivery under varying temperatures.
• Huge air box capacity provides exceptional airflow to help boost both torque and power.
• Compact-design dual intake system enhances performance without sacrificing fuel tank capacity.
• Large-capacity radiator ensures superior engine cooling for maximum efficiency.
• Single-axis, internal counterbalancer reduces engine vibration for maximum rider comfort.
• Wide-ratio, 5-speed transmission with 5th gear overdrive reduces engine rpm at highway speeds for smooth, relaxed engine touring.
• Maintenance-free, light-action hydraulic clutch
• Smooth, clean, quiet, low-maintenance shaft drive
• 4-into-2 exhaust system puts out a throaty exhaust note and creates a long, low profile that's easily customizable.
• Maintenance-free transistorized coil ignition provides a precise timing curve at all rpms for instant engine response and fast, sure starts.
• Automatic cam chain tensioners reduce maintenance and mechanical engine noise.
• Air induction system (A.I.S.) reduces harmful CO and HC emissions.
• Spin-on type oil filter means fast, easy oil changes.
• Easy-to-use heel-toe shifter highlights the Midnight Venture's classic design.
• Numerous chromed engine parts highlight pride of ownership and attention to detail.

CHASSIS/SUSPENSION

• High-integrity, double-cradle frame with solid engine mounting and 29° caster angle delivers responsive steering and excellent handling.
• Class-leading, long wheelbase 1,705mm (67.1") provides great rider control and excellent stability.
• Long wheelbase also creates exceptionally roomy ergonomics for maximum rider and passenger touring comfort.
• Air-adjustable, 43mm front fork with 140mm (5.6") of wheel travel smoothes out the bumps and can be adjusted for varying load capacities.
• Air-adjustable, link rear suspension features a vertically mounted single shock for that classic hardtail look and outstanding long-distance ride quality. Rear wheel travel is 105mm (4.1").
• Air adjustability allows the rider to adjust rear suspension preload to match load and road conditions.
• Dual 298mm front and single 320mm rear disc brakes use 4-piston calipers to provide strong, linear stopping power.
• Wide, fork-mounted fairing with wind deflectors and frame-mounted lower cowlings offer outstanding wind and weather protection.
• Full-sized, floating-type rider and passenger floorboards reduce vibration and are positioned for optimal long-distance comfort.
• Easy-to-reach, large-diameter, 1-inch, rubber-mounted handlebars reduce vibration.
• 22.5-litre fuel tank with low-fuel warning light ensure outstanding long-distance touring range.
• Large, powerful 12V 60/55-watt halogen headlight maximizes nighttime visibility while cutting a stylish profile.
• Remote adjustable headlight aiming with conveniently located control helps compensate for changes in load.
• Vintage-style instrument console features: digital speedometer, odometer, dual tripmeters, fuel reserve tripmeter, clock and fuel gauge.
• Convenient electronic cruise control system. Switch is located on right handlebar for ease of use.
• Clarion AM/FM cassette stereo features automatic volume control (AVC), 18-FM presets, 6-AM presets, covered cassette deck and remote controllers for rider and passenger. There is a front auxillary plug-in for an MP3 player.
• Four weather-resistant speakers (2-front/2-rear) with 14-watts per channel
• Handlebar-mounted 40-channel CB radio
• Two-way rider/passenger intercom system
• Audio system is CD changer compatible and handset-ready (available accessories).
• Huge, 57-litre rear trunk with easy, one-touch opener can hold two full-faced helmets.
• Colour-matched, hard saddlebags feature handy, one-touch openers and 35-litres of storage per bag.

ADDITIONAL FEATURES

• Low-maintenance, 18 amp sealed battery ensures easy, reliable starting.
• Self-canceling turn signals with stylish clear lens.
• Incomparable fit and finish includes flawless paint with extensive chrome and brushed stainless steel accents, and deep valanced steel fenders.
• Ignition switch, with integrated steering lock, and accessory position is mounted at the front of fuel tank for extra convenience.
• 12 volt cigarette lighter-style fairing mounted DC outlet
• 12 volt DC connector located under the rider seat for additional accessories
• Chrome engine guards, fender trim and 3-D Venture front fender mascot highlight unparalleled styling and attention to detail.
• Theft-resistant ignition switch
• Chrome handlebar switches
• Padded passenger grab rails
• Extra wide clutch and brake levers
• Blacked-out engine block with polished cooling fin edges
• Chromed front fork assembly
• 3-D Venture fuel tank emblem
• Exclusive Royal Star 5-year unlimited mileage warranty

Engine

• Type 79-cubic-inch (1294cc) liquid-cooled 70° V-four; DOHC, 4 valves/cylinder
• Bore x Stroke 79mm x 66mm
• Compression Ratio 10.0:1
• Fuel Delivery (4) 32mm Mikuni CV
• Ignition TCI: Transistor Controlled Ignition
• Transmission 5-speed, wide-ratio w/5th-gear overdrive; hydraulic clutch
• Final Drive Shaft

Chassis

• Suspension / Front Telescopic fork; air-assist, 5.5-in travel
• Suspension / Rear Single shock; air-assist, 4.1-in travel
• Brakes / Front Dual hydraulic disc, 298mm
• Brakes / Rear Hydraulic disc, 320mm
• Tires / Front 150/80-16
• Tires / Rear 150/90-15
• Wheels 7-spoke cast

Dimensions

• Length 104.5 in
• Width 35.4 in
• Height 61.6 in
• Seat Height 29.5 in
• Wheelbase 67.1 in
• Fuel Capacity 6.0 gal
• Fuel Economy** 42 mpg
• Wet Weight*** 869 lb

Read More

Yamaha Road Star Silverado , 2011





Yamaha Road Star Silverado , 2011

Fuel Consumption * 15kpl/43mpg(Imp)
Fuel injected 1,670cc V-twin
Hard saddlebags

ENGINE

• 1,670cc, air-cooled, long-stroke, OHV, 8-valve, 48° V-twin powerplant pumps out lots of low-rpm torque. Max torque occurs at 2,500 rpm.
• 4 valves per cylinder provide optimum breathing efficiency while 2 spark plugs per cylinder ensure complete combustion for maximum power output. Max torque occurs at 2,500 rpm.
• Hydraulic valve lifters driven by twin crankcase-mounted camshafts deliver exceptional torquey performance and reduce maintenance needs.
• Twin crankcase-mounted camshafts activate the valves via hydraulic valve lifters and pushrods.
• Traditional pushrod valve actuation keeps overall engine height down for a lower centre of gravity. Pushrod tubes are chromed, adding to the beauty of this unique high tech, yet traditional, engine.
• Large-diameter, forged pistons offer great durability and lighter weight for fast engine response.
• Large bore ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight, reduce friction and increase cylinder service life.
• Cooling fin thickness is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, maintaining that traditional clean, air-cooled engine appearance.
• Electronic fuel injection with TPS features a single 40mm throttle body with dual injectors (one for each cylinder). The throttle position sensor is linked to the ECU and supplies info about throttle opening so the ECU can adjust ignition timing for optimum engine performance at all rpms.
• High-capacity air intake system with paper type air filter provides maximum breathing for optimum performance.
• Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds.
• Clean, quiet belt drive system is extremely low- maintenance and simplifies customization. Special narrow design drive belt and sprockets (front and rear) provide lightweight performance and exceptional durability.
• Dry sump lubrication system with handy, spin-on oil filter, creates a lower centre of gravity by helping reduce overall engine height. The oil tank is located under the seat.
• Large-flywheel crankshaft delivers superior, low-rpm torque and that incredible V-twin "pulse" feel.
• 2-piece heel-and-toe shifter adds versatility and enhances the overall cruising experience. The 2-piece design allows the rider to individually adjust front and rear portions to suit foot size or remove the rear section if not desired.
• Electric starting system features solenoid-activated auto-decompressor for easy, no-hassle starting.
• 2-into-2 exhaust system features beefy, staggered, dual shotgun pipes that produce a soulful V-twin exhaust tune. Muffler replacement is fast and simple, if desired.
• Lots of high-quality chrome engine covers
• Air Induction System (A.I.S.) reduces exhaust emissions (CO + HC).

CHASSIS/SUSPENSION

• Solid-mounted engine housed in a specially designed gusset-less, double-cradle frame
• Long 1,685mm (66.3") wheelbase creates a long and low retro profile, great rider comfort and solid, stable handling.
• Spacious ergonomics provide ample legroom, which maximizes rider comfort.
• 43mm front forks provide 140mm (5.5") of wheel travel to smooth out the ride. The large-diameter upper fork shrouds, lower fork legs, upper triple clamp and handlebar clamp are accented with a brilliant chrome finish.
• Spring preload-adjustable, single-shock, rear link suspension lowers centre of gravity for better handling and a plush ride. Rear wheel travel is 110mm (4.3").
• Rear shock is horizontally mounted under the engine and tucked out of sight, providing that classic, hardtail look.
• 298mm front disc brakes feature ultra rigid, monoblock, 4-piston calipers with chrome "buttons" accenting the outer piston covers. The dual disc brake set-up eliminates the unsettling twisting effect of a single disc set-up found on most cruisers.
• 320mm rear disc brake with 4-piston caliper provides excellent stopping power and feel.

Rider seat offers great comfort and support.

• Passenger backrest provides that extra peace of mind for your special companion.
• Colour-matched, hard saddlebags with chrome accents offer 35 litres of storage space per bag. The bags are lockable and fitted with handy, one-touch latches.
• Full-size, floating-type rider floorboards are roomy and comfortably positioned while also helping reduce vibration.
• Passenger floorboards provide roomy comfort and reduce vibration.
• Deeply valanced steel fenders combine timeless styling with rugged durability and easy customization.
• Nine-spoke, cast aluminum wheels not only reduce weight and maintenance (no spokes to tighten), but they also add a sportier styling image to the Road Star Silverado S. Tubeless, bias ply tires are standard equipment.
• 18 litre fuel tank provides an exceptional cruising range. The FI electric fuel pump is located inside the tank. Fuel tank seam is hidden for that clean, custom look.
• Wide, swept-back, 1"-diameter handlebars reduce vibration on the rider's hands thanks to being rubber mounted. The one-piece handlebar clamp is beautifully chrome-plated.
• Beautiful braided-look steel throttle and clutch cables enhance that the Road Star's stylish custom look and image.
• Tank-mounted speedometer features a stylish design with raised 3-D marks to highlight the speed graduations. Instrumentation includes odometer, dual tripmeters, clock and a fuel gauge plus a range of indicator lights.
• Eye-catching, diamond-shaped, LED rear taillight with white lens looks like it is straight off a fully customized machine. The LED design not only provides a bright light, but also uses less power.
• Stylish turn signals with custom looking clear lenses are self canceling
• Rear turn signal mounting bracket is beautifully chromed and features a built-in license plate light.
• Value added passing lamps not only enhance styling, but also provide additional illumination.

ADDITIONAL FEATURES

• Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.
• Chromed, extra wide front brake and clutch levers provide a quality feel.
• Chrome handlebar switches, lever and master cylinder
• Stylish 3-D, fuel tank-mounted Road Star logo
• Seat and steering locks are integrated into the main ignition switch for extra convenience.
• Handy, dual under seat helmet holders
• Powerful, 12V 60/55-watt, halogen headlight
• Low-maintenance, sealed battery
• In-tank electric fuel pump
• Self-canceling turn signals with stylish clear lenses

USA Specifications

Engine

• Type 102-cubic-inch (1670cc) air-cooled 48° V-twin; pushrod OHV, 4 valves/cylinder
• Bore x Stroke 97mm x 113mm
• Compression Ratio 8.3:1
• Fuel Delivery Fuel injection
• Ignition TCI: Transistor Controlled Ignition
• Transmission 5-speed, wide-ratio; multiplate wet clutch
• Final Drive Belt

Chassis

• Frame Steel; hidden shock
• Suspension / Front 43mm fork; 5.5-in travel
• Suspension / Rear Single shock; 4.3-in travel
• Brakes / Front Dual hydraulic disc, 298mm
• Dual hydraulic disc, 298mm Hydraulic disc, 320mm
• Tires / Front 130/90-16
• Tires / Rear 150/80-16
• Wheels 9-spoke cast

Dimensions

• Length 98.4 in
• Width 38.6 in
• Height 59.1 in
• Seat Height 27.9 in
• Ground Clearance 5.7 in
• Wheelbase 66.5 in
• Fuel Capacity 4.8 gal
• Fuel Economy** 36 mpg
• Wet Weight*** 773 lb

Read More

Kymco Quannon 150, 2011

Kymco Quannon 150, 2011

The Quannon 150 is the sexiest KYMCO to date. The small displacement, entry level sport bike is ideal for an effortless ride. The lightweight Quannon is sure to fit perfectly into your urban lifestyle, is easy to handle and is equally light on fuel, insurance, and the environment. It is, on the other hand, loaded with great features such as a smooth five speed transmission, front and rear disk brakes for superior braking power, a digital instrument cluster, and 110/80-17 front and 140-70-17 rear tires for excellent stability and great grip. The 150cc 4-valve highly fuel-efficient engine has all the power you'll need to get you around town with plenty of fuel to spare.

Additional Features: 17" alloy wheels, 110-80-17 front and 140-70-17 rear tires, 276mm front and 220mm rear disk brakes, 5 speed manual transmission, 4 stroke 4 valve OHC engine, 9000 rpm redline, 13.5L fuel tank, wet clutch, 31" seat height, dual halogen headlights, multi function digital instrument cluster, under seat storage, lockable helmet hook, rear passenger pegs.

Specifications

• Engine Type Oil cooled, 4 valve, SOHC, 4 stroke
• Displacement 149.3 cc
• Bore & stroke 62 x 49.5 mm
• Clutch Type Wet Multi Disk
• Compression ratio 11:1
• Valve train S.O.H.C., chain drive
• Fuel Delivery Keihin Carburetor
• Ignition CDI
• Transmission 5 Speed Manual
• Spark plug CR8E
• Emission CEPA Environmental Registered
• Fuel capacity 13.5 litres
• Tires 110/80-17 front; 140/70-17 rear
• Front Suspension Telescopic Forks
• Rear Suspension Dual Adjustable Shocks
• Front Brakes Drilled Disk / Dual Piston Caliper
• Rear Brakes Drilled Disk / Dual Piston Caliper
• Instrument cluster Digital Speedometer, Analog Tach
• Mirrors 2
• Stands Centre and Side Stands
• Storage compartment Small compartment under passenger seat
• Complete Size (L x W x H) 2057 x 725 x 1174 mm
• Seat Height 800 mm
• Dry weight 137 kg
• Riders 2 Riders with foldable foot pegs

Read More

Yamaha

Yamaha, 2011

= Yamaha Road Star Silverado S
= Yamaha Royal Star Venture S
= Yamaha V-Star 950 Tourer
= Yamaha Stratoliner Deluxe
= Yamaha V-Star 650 Silverado
= Yamaha V-Star 1300 Tourer
= Yamaha V-Star 1100 Silverado


Yamaha, 2010

Yamaha, 2009

Yamaha, 2008

Yamaha, 2007

Yamaha, 2006

Yamaha, 2005

Read More

BMW Concept C, 2011



BMW Concept C, 2011

BMW Concept C. The scooter of the future made by BMW Motorrad.
Munich. Recent years have seen radical changes in the world of individual mobility, specifically in the conurbations, and the number of registrations has rocketed for virtually all individual transport concepts. However, the space available to traffic has not grown to the same extent, so individual mobility must come to terms with the new circumstances.

Against this background, BMW Motorrad will be expanding its present motorcycle adventure world to include the big scooter. This new product segment will first give rise to two innovative premium scooters with internal combustion engines. The differing characteristics of this concept will appeal to a broad target group. In addition, some thought is being given to a future alternative drive with electric motor.

BMW Motorrad will be combining in these scooters the outstanding handling of the motorcycle with the particular agility and conceptual comfort of the scooter for the maximum experience of dynamic riding – a big scooter made by
BMW Motorrad. There are plans to manufacture these future production vehicles at the BMW Motorrad plant in Berlin.

BMW Motorrad is continuing its strategy of strong and sustainable growth and so will be intensifying its traditional work in the enduro, touring, and sport touring fields. Following its successful entry to the super sport segment, BMW Motorrad will now be expanding its range yet again to include a highly promising business line.
This path leads straight to the big scooter segment. These high displacement vehicles with dynamic handling characteristics have gained considerable popularity all over the world. Moreover, they present an interesting alternative to returnees who up to now were undecided about motorcycles after long periods of abstinence.

BMW Concept C. New dimension in the field of big scooters.
New ideas and concepts on the subject of two-wheeled mobility are a decades old tradition at BMW Motorrad. Countless times, concept studies and drafts have been presented that reflect the power of innovation and future orientation of BMW Motorrad.
With its Concept C study, BMW Motorrad is yet again embarking on a new path and demonstrating a fascinating mobility option for the future. Here, C stands for “commuter”. Particularly in view of the traffic development in urban areas, it presents the prospect of an innovative, sporty big scooter for the future premium segment.

As usual at BMW Motorrad, there is more to this study than just an attempt to present a big scooter for the highest demands. Rather, the designers and engineers of BMW Motorrad focused above all on the emotive component in addition to the technical function and quality – and the thrill from the very first moment on.

BMW Concept C. Emotion, dynamic handling, and function in the design.
When unveiling its Concept C at EICMA in Milan, BMW Motorrad will be directing the maximum possible emotion to its interpretation of this subject, which will bear witness to the primary claims of maximum, all round functionality.

Concept C as a vision of the big scooter is immediately recognisable as a member of the BMW Motorrad family. For instance, it also presents the so-called “split face”, a visual tripartite of dynamic response extending from the front silhouette to the front wheel cover and beyond. In the style of highly sporty
BMW Motorrad models, such as the S 1000 RR, Concept C also features a twin-tipped front spoiler.

Unlike the L shaped side view presented up to now by big scooters, with their predominantly vertical body lines and colour scheme, Concept C has ventured on a new, much more sporty and dynamic path. The body lines sweeping up to the vehicle’s rear underscore this big scooter’s active riding character. The high rear section emphasises the lightness and agility of Concept C's powerful two-cylinder engine. Sportiness and dynamism are also underscored by the close cut, speeder-style windscreen.
The functional side of this scooter is expressed in stylish design elements, such as the aluminium look of the bash plates with the air intake adopted from the BMW GS.

The black chromium of the suspension and frame parts form a thrilling, dynamic relationship with the aluminium chromium, silver, and blue paintwork of the body parts. In addition, the black satin sections present a high-contrast emphasis on the vehicle’s central area. This highly technical and high-quality elegance is borne further by finely worked details, such as the fuel tank cover reminiscent of aircraft and the short, sporty muffler. The visionary facet of Concept C is presented by the tyres with flanks and treads of blue.

BMW Concept C. Pioneering technology that fuels enthusiasm.
Concept C presents unusual and innovative solutions that offer a wide prospect of what in future can become reality in this segment.
For instance, Concept C features a highly complex monolever mechanism with hollowed-out shaft connected to a suspension strut visible from the outside. In this study, front-wheel control takes the form of an upside down fork.

The stable twin disc brake at the front features two radial brake callipers that also underscore the dynamic sportiness of Concept C. In addition, the single disc brake at the rear and the BMW Motorrad ABS provide the maximum possible safety during braking manoeuvres.
The dynamic and equally comfortable driving force behind Concept C is provided by a new, two-cylinder inline engine in conjunction with CVT (continuously variable transmission). Engine power, torque, and therefore performance will be moving towards the top of the segment.

Light is cast on a more distant point in the future by the LED headlamp integrated into the face panelling. This future vision is also continued by the deliberate absence of conventional rear view mirrors, which will be replaced in Concept C with two video cameras in the rear. These record the area behind the vehicle and transfer the images to two LCD monitors in the cockpit within view of the rider. The road speed, engine speed, and other data appear on a third LCD display integrated at the centre of the cockpit.

BMW Concept C. Perfected rider equipment and stowage space concept.
Concept C also testifies to thoughts and ideas extending beyond the actual vehicle. In line with the BMW Motorrad philosophy, a big scooter realised in the Concept C style will also come with a range of adequate rider equipment. In the best BMW Motorrad tradition, the development of a big scooter will also include a suitable stowage space concept.

Read More

Norton Commando 961 SE, 2011



Norton Commando 961 SE, 2011

Specifications


Frame
- Frame: Steel tubular with integral oil tank
- Swing arm: Twin-sided steel construction
- Wheelbase: 1420mm (55.9 in)
- Rake: 24.5 degrees
- Trail: 99mm (3.9 in)
- Front suspension: 43mm Ohlins RWU
- Rear suspension: Ohlins reservoir-style twin shocks
- Front wheel: 3.50 x 17” BST Carbon Fibre
- Rear wheel: 5.0 x 17” BST Carbon Fibre
- Front tyre: 120/70 x 17”
- Rear tyre: 180/55 x 17”
- Front wheel travel: 115mm (4.53 in)
- Rear wheel travel: 100mm (3.94 in)

Brakes & Hydraulics
- Front brakes: Full Brembo system, twin Brembo 320mm semi-floating hi
carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers
- Rear brakes: Full Brembo system, single Brembo 220mm disc, Brembo 2 piston “Gold Line” calliper
- Brembo “Gold Line” front brake master cylinder
- Brembo “Gold Line” hydraulic clutch master cylinder
- Brembo rear brake master cylinder
- Brembo hydraulic clutch actuation slave cylinder

Transmission
- Gear box: constant mesh 5 speed
- Final drive: 525 “O” ring chain
- Clutch: Wet multi-plate hydraulic lifter
- Electric start Power Assembly
- Engine type: New engine developed by Norton and F1 engine builders, MCT of Oxfordshire, England. Parallel twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft.
- Displacement: 961cc
- Cooling system: Air
- Valve actuation: Push rod, 2 valves per cylinder
- Bore x stroke: 88mm x 79mm
- Compression ratio: 10.1:1
- Power: 80PS @ 6500RPM
- Torque: 90Nm @ 5200RPM
- Ignition: Crank fired electronic
- Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter

Electronics & Controls
- Charging system: 300 watt hi-output charging system
- Instrumentation: Norton electronic analogue speedo & tachometer

Miscellaneous
- Fuel tank capacity: 17 litres (4.5 US gallon)
- Dry weight: 188kg (414.5 lbs)
- Seat height: 813mm (32 in)
- Steering: Fully machined billet yokes, triple clamp lower yokes
- Handlebars: Tubular steel in chrome

Carbon Pack
- Front mud guard
- Chain guard
- Rear wheel hugger
- Rear number plate hugger
- Headlight mounting
- Front wheel
- Rear wheel
Price: £15,995

Read More

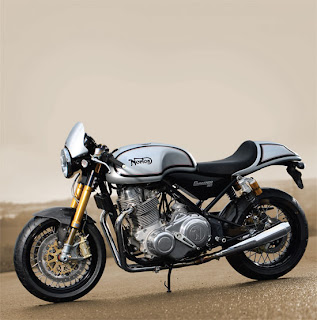

Norton Commando 961 Cafe Racer, 2011







Norton Commando 961 Cafe Racer, 2011

Specifications

Please note, the Commando 961 Cafe Racer and the Commando 961 Sport are currently only available in the U.K. and will be made available internationally to purchase from your nearest Norton dealer in the near future.

Frame
- Frame: Steel tubular with integral oil tank
- Swing arm: Twin-sided steel construction
- Wheelbase: 1420mm (55.9 in)
- Rake: 24.5 degrees
- Trail: 99mm (3.9 in)
- Front suspension: 43mm Ohlins USD - Adjustable preload, compression & rebound damping.
- Rear suspension: Ohlins reservoir-style twin shocks - Adjustable ride height, reload, compression and rebound
- Front wheel: 36 spoke 3.50 x 17” Black Rim
- Rear wheel: 40 spoke 5.0 x 17” Black Rim
- Front tyre: 120/70 x 17”
- Rear tyre: 180/55 x 17”
- Front wheel travel: 115mm (4.53 in)
- Rear wheel travel: 100mm (3.94 in)

Brakes & Hydraulics
- Front brakes: Full Brembo system, twin Brembo 320mm semi-floating hi
carbon stainless steel discs & Brembo 4 piston radial callipers
- Rear brakes: Full Brembo system, single Brembo 220mm disc, Brembo 2 piston “Gold Line” calliper
- Brembo front brake master cylinder, with integral reservoir
- Brembo hydraulic clutch master cylinder, with integral reservoir
- Brembo rear brake master cylinder
- Brembo hydraulic clutch actuation slave cylinder
- Gear box: constant mesh 5 speed
- Final drive: 525 “O” ring chain
- Clutch: Wet multi-plate hydraulic lifter
- Electric start

Transmission
- Gear box: constant mesh 5 speed
- Final drive: 525 “O” ring chain
- Clutch: Wet multi-plate
- Electric start Power Assembly
- Engine type: New engine developed by Norton and F1 engine builders, MCT of Oxfordshire, England. Parallel twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft.
- Displacement: 961cc
- Cooling system: Air
- Valve actuation: Push rod, 2 valves per cylinder
- Bore x stroke: 88mm x 79mm
- Compression ratio: 10.1:1
- Power: 80PS @ 6500RPM
- Torque: 90Nm @ 5200RPM
- Exhaust: Café Racer Sports Exhaust
- Ignition: Crank fired electronic
- Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter

Electronics & Controls
- Charging system: 300 watt hi-output charging system
- Instrumentation: Norton electronic analogue speedo & tachometer

Miscellaneous
- Fuel tank capacity: 17 litres (4.5 US gallon)
- Dry weight: 188kg (414.5 lbs)
- Seat height: 813mm (32 in)
- Steering: Black anodised billet yokes
- Handlebars: Clip-on handlebars
- Bodywork: Café Racer Fly-Screen

Price: £13,995

Read More

Norton

Norton, 2011

= Norton Commando 961 Cafe Racer
= Norton Commando 961 SE

Norton, 2010
Norton, 2009

Read More

Buell Lightning CityX XB12SX, 2010



 Buell Lightning CityX XB12SX, 2010

 Specifications

Europe MSRP: starting at £7,640

Dimensions1

• Length2 1985 mm
• Seat Height3 765 mm
• Overall Width4 831 mm
• Ground Clearance2 110 mm
• Rake at Steering Head (°) 21
• Fork Angle (°) 21
• Trail 84 mm
• Wheelbase 1320 mm
• Fuel Capacity 14.5 l
• Oil Capacity5 2.4 l
• Dry Weight 179 kg
• Gross Vehicle Weight Rating 386 kg
• Load Capacity 173 kg

Powertrain1

• Engine Thunderstorm air/oil/fan-cooled, 4-stroke, 45° V-Twin
• Displacement 1203 cc
• Bore 88.9 mm
• Stroke 96.8 mm
• Engine Torque (EU Standard EC95/1) 104 Nm / 77 ft. lbs.
• Engine Torque RPM (EU Standard EC95/1) 5500
• Horsepower (EU Standard EC95/1) 93 hp / 94 PS / 69 kW
• Horsepower RPM (EU Standard EC95/1) 7000
• Compression Ratio 10.0:1
• Mileage per US EPA Urban N/A
• Mileage per US EPA Highway N/A
• Intake Zero-resistance airbox

DriveTrain1

• Primary Drive Type Chain
• Primary Drive Ratio 1.500:1 (57/38)
• Secondary Drive Type7
• Constant path, 14 mm pitch aramid-reinforced Goodyear® Hibrex® belt with Flexten® Plus technology
• Secondary Drive Member Pitch Length (# of Teeth or # of Links) 128
• Secondary Drive Ratio 2.407:1 (65/27)
• Transmission 5-speed, helical gear
• 1st 2.65
• 2nd 1.89
• 3rd 1.41
• 4th 1.17
• 5th 1.00
• 6th N/A

Chassis1

• Front Brake ZTL² brake
• Front Rotor and Caliper Configuration 8-piston, fixed caliper
• Front Rotor Size, OD 375 mm, single sided, inside-out, stainless steel, floating disc
• Number of Front Brake Rotors 1
• Rear Rotor and Caliper Configuration Single piston, floating caliper; stainless steel, fixed disc
• Rear Rotor Size, OD 240 mm
• Rear Shock Showa coil-over monoshock with remote under-seat reservoir and adjustable compression damping, rebound damping, and spring preload
• Front Fork Showa inverted forks with adjustable compression damping, rebound damping, and spring preload
• Front Fork Slider Tube Diameter 43 mm
• Fork Lock Availability (true or false) True
• Suspension Travel: Front 120 mm
• Suspension Travel: Rear 129 mm
• Lean Angle: Soft Contact, Degrees Left 42°
• Lean Angle: Soft Contact, Degrees Right 42°
• Lean Angle: Hard Contact, Degrees Left 48°
• Lean Angle: Hard Contact, Degrees Right 50°
• Frame Black aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
• Swingarm Cast aluminium swingarm with detachable brace. Oil in swingarm.

Wheels and Tyres1

• Tyre Brand and Model, Front Pirelli® Scorpion® Sync ® T
• Tyre Brand and Model, Rear Pirelli® Scorpion® Sync ® T
• Tyre Size Designator, Front 120/70 ZR-17
• Tyre Size Designator, Rear 180/55 ZR-17
• Wheel Type, Front 6-spoke, ZTL™ cast aluminium
• Wheel Type, Rear 6-spoke, cast aluminium
• Wheel Size, Front 17" x 3.5"
• Wheel Size, Rear 17" x 5.5"

Electrical1

• Battery Sealed Lead Acid, maintenance-free, 12-volt, 12 amp-hour (per Battery Council International rating), 200 cca.
• Charging 30-amp, permanent magnet, single-phase alternator with solid-state regulator (405W @3000 rpm, 405W peak)
• Starting 1.2 kW electric with solenoid shift starter motor engagement
• Headlamps Twin Quartz Halogen [H7] 55-watt low beam, 55-watt high beam
• Tail/Stop Lights 5W / 21W
• Turn Signal Lights 10W manual canceling
• License Plate Light 5W

Miscellaneous1
Instruments Electronic speedometer, tachometer, odometer; dual tripmeter; high beam, neutral, oil, low fuel (plus, odometer shows miles traveled on reserve), turn signal and engine diagnostic indicator lamps; clock

Warranty9
2 Year, unlimited mileage warranty (Europe); 1 Year Buell Assistance roadside assistance (Europe)
Colors/Finishes/Graphics1
Colours Valencia Orange Translucent; Hero Blue Translucent
Frame Phantom Metallic
Wheels Villain Black

Footnotes
1. Buell reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.
2. Unladen, wet configuration (no rider, all fluids).
3. Laden, wet configuration (design rider, all fluids).
4. Without mirrors.
5. Oil capacity at oil change, with filter.
6. N/A
7. Hibrex and Flexten are registered trademarks of Goodyear Technologies, Inc.
8. Bottomed-out configuration (100% suspension compression).
9. Please refer to motorcycle owner's manual for warranty details.

Read More

Buell Lightning CityX XB9SX, 2010



Buell Lightning CityX XB9SX, 2010

Specifications

USA MSRP: Cherry Bomb Translucid $8,999, Kick Ash Translucid $8,999

Dimensions1
Overall Length2 78.2 in. (1,986 mm)
Seat Height, Laden3 30.1 in. (765 mm)
Seat Height, Unladen 32 in. (813 mm)
Overall Width without mirrors4 32.7 in. (831 mm)
Ground Clearance, Unladen2 4.35 in. (110 mm)
Rake (Steering Head Angle) at Ride Height (degrees) 21
Fork Angle at Ride Height (degrees) 21
Trail at Ride Height 3.3 in. (84 mm)
Wheelbase, Unladen 52 in. (1,321 mm)
Fuel Capacity, Total 3.82 gal. (14.5 l)
Fuel Capacity 0.75 gal. (2.8 l)
Oil Capacity5 2.5 qt. (2.4 l)
Dry Weight 390 lb. (177 kg)
Gross Vehicle Weight Rating 850 lb. (386 kg)
Load Carrying Capacity 391 lb. (177 kg)

Powertrain1
Engine Buell Thunderstorm 984cc air/oil/fan-cooled, four-stroke, 45 degree V-twin
Displacement 60 cu in (983 cc)
Bore 3.5 in. (88.9 mm)
Stroke 3.125 in. (79.38 mm)
Peak Torque per SAE J607, North America 70 ft-lb (95 Nm)
Peak Torque RPM per SAE J607, North America 5,500
Peak Horsepower per SAE J607, North America 92 hp (69 kW)
Peak Horsepower RPM per SAE J607, North America 7,500
Compression Ratio 10.0:1
Mileage per US EPA Urban Trace, CITY6 50 mpg (4.7 l/100 km)
Mileage per US EPA HIGHWAY Fuel Economy Test6 65 mpg (3.6 l/100 km)
Intake Zero-resistance airbox

DriveTrain1
Primary Drive Type Chain
Primary Drive Ratio 1.676 (57/34)
Secondary Drive Type7
Constant path, 14mm pitch aramid reinforced Hibrex(R) belt with Flexten(R) Plus technology.
Secondary Drive Member Pitch Length (# of Teeth or # of Links) 128
Secondary Drive Ratio 2.407 (65/27)
Transmission type 5-speed, Helical gear design
Transmission Ratio, 1st 2.648
Transmission Ratio, 2nd 1.892
Transmission Ratio, 3rd 1.407
Transmission Ratio, 4th 1.166
Transmission Ratio, 5th 1
Transmission Ratio, 6th

Chassis1
Front Brake ZTL (tm) Braking System
Front Rotor and Caliper Configuration 6-piston, fixed caliper. Single-sided, inside-out, floating rotor.
Front Rotor Size, OD 14.77 in. (375 mm)
Number of Front Brake Rotors 1
Rear Rotor and Caliper Configuration Single-piston, floating caliper. Fixed rotor.
Rear Brake
Rear Rotor Size, OD 9.45 in. (240 mm)
Rear Suspension Type and Configuration Fully adjustable (adjustable compression damping, rebound damping and spring preload), coil-over monoshock with remote, underseat reservoir.
Front Suspension Type and Configuration Fully adjustable (adjustable compression damping, rebound damping and spring preload) inverted forks.
Front Fork Slider Tube Diameter 1.69 in. (42.9 mm)
Fork Lock Availability (true or false) True
Suspension Travel, Front Wheel, Along Fork Line 4.72 in. (120 mm)
Suspension Travel, Rear Wheel, Vertical 5.06 in. (129 mm)
Lean Angle at Full Suspension Compression, Soft Contact, Left (degrees) 42°
Lean Angle at Full Suspension Compression, Soft Contact, Right (degrees) 42°
Lean Angle at Full Suspension Compression, Hard Contact, Left (degrees) 48°
Lean Angle at Full Suspension Compression, Hard Contact, Right (degrees) 50°
Frame Aluminum frame with Uniplanar Powertrain vibration isolation system - FUEL IN FRAME
Swingarm Description Cast aluminum swingarm with detachable brace. OIL IN SWINGARM.

Wheels and Tires1
Tire Brand and Model, Front Pirelli Scorpion Sync
Tire Brand and Model, Rear Pirelli Scorpion Sync
Tire Size Designator, Front 120/70 ZR-17
Tire Size Designator, Rear 180/55 ZR-17
Wheel Type, Front 6-spoke, ZTL, cast aluminum front wheel.
Wheel Type, Rear 6-spoke, cast-aluminum rear wheel.
Wheel Size, Front (width x dia) (in) 3.5x17
Wheel Size, Rear (width x dia) (in) 5.5x17

Electrical1
Battery Type and Specifications Sealed Lead Acid, maintenance-free, 12-volt, 12 amp-hour (per battery Council International rating), 200 cca.
Charging System Specifications 30-amp max permanent magnet single-phase alternator with solid-state regulator (405 watts@3,000 rpm, 405 watts peak)
Starter System Specifications 1.2 kW electric with solenoid shift starter motor engagement
Headlamp Type and Wattages (high, low and position lamp) Twin quartz Halogen (H7) 55-watt low beam, 55-watt high beam. 5-watt position lamp.
Tail Light Wattages (stop and running) .55W for tail light, 5W for stop light
Turn Signal Lights Type (manual or self-canceling) and Wattage Manual canceling, 10w.
License Plate Lamp Wattage 5w

Footnotes
1. Specifications for non-US markets might differ. Buell reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.
2. Unladen, wet configuration (no rider, all fluids).
3. Laden, wet configuration (180lb. design rider, all fluids).
4. Without mirrors.
5. Oil capacity at oil change, with filter.
6. Based on tests conducted under lab conditions per U.S. EPA test procedures. Mileage will vary depending on personal riding habits, weather conditions, trip length and vehicle condition.
7. Hibrex and Flexten are registered trademarks of Goodyear Technologies, Inc.
8. Bottomed-out configuration (100% suspension compression).
9. Please refer to motorcycle owner's manual for warranty details.

Read More

Buell Firebolt XB12R, 2010





Buell Firebolt XB12R, 2010

 Specifications

USA MSRP: Sunfire Yellow $10,299, Midnight Black $10,299

Dimensions1

• Overall Length 276.2 in. (1,935 mm)
• Seat Height, Laden 330.5 in. (775 mm)
• Seat Height, Unladen 31.9 in. (810 mm)
• Overall Width without mirrors428.1 in. (714 mm)
• Ground Clearance, Unladen24.35 in. (110 mm)
• Rake (Steering Head Angle) at Ride Height (degrees) 21
• Fork Angle at Ride Height (degrees) 21
• Trail at Ride Height 3.3 in. (84 mm)
• Wheelbase, Unladen 52 in. (1,321 mm)
• Fuel Capacity, Total 3.82 gal. (14.5 l)
• Fuel Capacity 0.75 gal. (2.8 l)
• Oil Capacity 52.5 qt. (2.4 l)
• Dry Weight 395 lb. (179 kg)
• Gross Vehicle Weight Rating 850 lb. (386 kg)
• Load Carrying Capacity 379 lb. (172 kg)

Powertrain1

• Engine Thunderstorm 1203 air/oil/fan-cooled, 4-stroke, 45 degree V-twin
• Displacement 73.4 cu in (1,203 cc)
• Bore 3.5 in. (88.9 mm)
• Stroke 3.812 in. (96.82 mm)
• Peak Torque per SAE J607, North America 84 ft-lb (114 Nm)
• Peak Torque RPM per SAE J607, North America 6,000
• Peak Horsepower per SAE J607, North America 103 hp (77 kW)
• Peak Horsepower RPM per SAE J607, North America 6,800
• Compression Ratio 10.0:1
• Mileage per US EPA Urban Trace, CITY6
• 48 mpg (4.9 l/100 km)
• Mileage per US EPA HIGHWAY Fuel Economy Test6
• 65 mpg (3.6 l/100 km)
• Intake Zero-resistance airbox

DriveTrain1

• Primary Drive Type Chain
• Primary Drive Ratio 1.500 (57/38)
• Secondary Drive Type7
• Constant path, 14mm pitch aramid reinforced Hibrex(R) belt with Flexten(R) Plus technology.
• Secondary Drive Member Pitch Length (# of Teeth or # of Links) 128
• Secondary Drive Ratio 2.407 (65/27)
• Transmission type 5-speed, Helical gear design
• Transmission Ratio, 1st 2.648
• Transmission Ratio, 2nd 1.892
• Transmission Ratio, 3rd 1.407
• Transmission Ratio, 4th 1.166
• Transmission Ratio, 5th 1
• Transmission Ratio, 6th

Chassis1

• Front Brake ZTL-2 (tm) Braking System
• Front Rotor and Caliper Configuration 8-piston, fixed caliper. Single-sided, inside-out, floating rotor.
• Front Rotor Size, OD 14.77 in. (375 mm)
• Number of Front Brake Rotors 1
• Rear Rotor and Caliper Configuration Single-piston, floating caliper. Fixed rotor.
• Rear Brake
• Rear Rotor Size, OD 9.45 in. (240 mm)
• Rear Suspension Type and Configuration Fully adjustable (adjustable compression damping, rebound damping and spring preload), coil-over monoshock with remote, underseat reservoir.
• Front Suspension Type and Configuration Fully adjustable (adjustable compression damping, rebound damping and spring preload) inverted forks.
• Front Fork Slider Tube Diameter 1.69 in. (42.9 mm)
• Fork Lock Availability (true or false) True
• Suspension Travel, Front Wheel, Along Fork Line 4.72 in. (120 mm)
• Suspension Travel, Rear Wheel, Vertical 5.06 in. (129 mm)

Lean Angle at Full Suspension Compression, Soft Contact, Left (degrees)8
47°
Lean Angle at Full Suspension Compression, Soft Contact, Right (degrees)8
47°
Lean Angle at Full Suspension Compression, Hard Contact, Left (degrees)8
48°
Lean Angle at Full Suspension Compression, Hard Contact, Right (degrees)8
50°
Frame Aluminum frame with Uniplanar Powertrain vibration isolation system - FUEL IN FRAME
Swingarm Description Cast aluminum swingarm with detachable brace. OIL IN SWINGARM.

Wheels and Tires1

• Tire Brand and Model, Front Pirelli Corsa III
• Tire Brand and Model, Rear Pirelli Corsa III
• Tire Size Designator, Front 120/70 ZR-17
• Tire Size Designator, Rear 180/55 ZR-17
• Wheel Type, Front 6-spoke, ZTL, cast aluminum front wheel.
• Wheel Type, Rear 6-spoke, cast-aluminum rear wheel.
• Wheel Size, Front (width x dia) (in) 3.5x17
• Wheel Size, Rear (width x dia) (in) 5.5x17

Electrical1

• Battery Type and Specifications Sealed Lead Acid, maintenance-free, 12-volt, 12 amp-hour (per Battery Council International rating), 200 cca.
• Charging System Specifications 30-amp max permanent magnet single-phase alternator with solid-state regulator (405 watts@3,000 rpm, 405 watts peak)
• Starter System Specifications 1.2 kW electric with solenoid shift starter motor engagement
• Headlamp Type and Wattages (high, low and position lamp) Twin-projector beam (H3). 55-watt low beam, 55-watt high beam. 3-watt position lamp (EUR, ENG, JPN, AUS).
• Tail Light Wattages (stop and running) .55W for tail light, 5W for stop light
• Turn Signal Lights Type (manual or self-canceling) and Wattage Manual canceling, 10w.
• License Plate Lamp Wattage 5w

Footnotes
1. Specifications for non-US markets might differ. Buell reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.
2. Unladen, wet configuration (no rider, all fluids).
3. Laden, wet configuration (180lb. design rider, all fluids).
4. Without mirrors.
5. Oil capacity at oil change, with filter.
6. Based on tests conducted under lab conditions per U.S. EPA test procedures. Mileage will vary depending on personal riding habits, weather conditions, trip length and vehicle condition.
7. Hibrex® and Flexten® are registered trademarks of Goodyear® Technologies, Inc.
8. Bottomed-out configuration (100% suspension compression).
9. Please refer to motorcycle owner's manual for warranty details.

Read More
