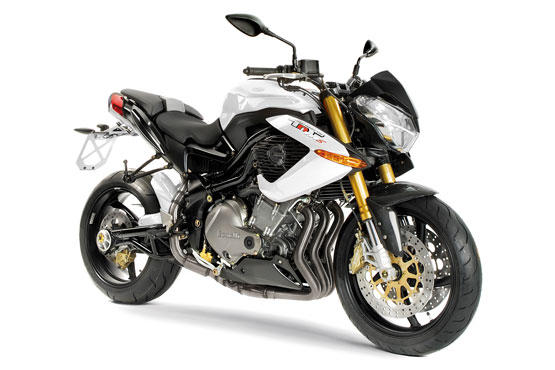

Benelli TNT 899, 2011
Specifications
ENGINE
TYPE In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double overhead camshaft, with balancer shaft
DISPLACEMENT 899 cc
BORE x STROKE 88 x 49,2 mm
COMPRESSION RATIO 12,5:1
RATED OUTPUT 88 kW (120 cv) @ 9500 rpm
MAX. TORQUE 88 Nm (9 kgm) @ 8000 rpm
FUEL SUPPLY Electronic injection with three throttle bodies ø53 mm
EXHAUST SYSTEM With catalytic converter and oxigen sensor
CERTIFICATION Euro 3
CLUTCH: Wet clutch
GEARBOX 6 speed
FINAL DRIVE Chain drive, ratio 16:41
CHASSIS
FRAME Decomposable, front steel trestle, rear alluminium alloy casting Pagina 1 di 3 / Page 1 of 3
FRONT SUSPENSION Ø43 mm upside-down fork, with idraulic extension / compression and spring preload adjustments
FRONT SUSPENSION STROKE 120 mm
REAR SUSPENSION Steel trestle swingarm, progressive rear dumper with idraulic extension/compression and spring preload adjustments
REAR SUSPENSION STROKE 120 mm
FRONT BRAKE Twin floating disk ø320 mm with 4 piston calipers
REAR BRAKE Singol disk ø240 mm with double piston caliper
FRONT RIM 17”x3.50” DOT-D
REAR RIM 17”x6.00” DOT-D
FRONT TYRE 120/70-ZR17 58W (-120/65-ZR17 56W-)
REAR TYRE 190/50-ZR17 73W (-180/55-ZR17 73W --- 200/50-ZR17 75W -)
DIMENSIONS
LENGHT 2128 mm
WIDHT EXCLUDING MIRRORS 790 mm
HEIGHT EXCLUDING MIRRORS 1050 mm
SEAT HEIGHT 820 mm
WHEELBASE 1443 mm
UNLADEN WEIGHT 208 kg
ROAD READY WEIGHT 215 kg
PERMITTED TOTAL WEIGHT 400 kg
USABLE TANK VOLUME 16 lt
